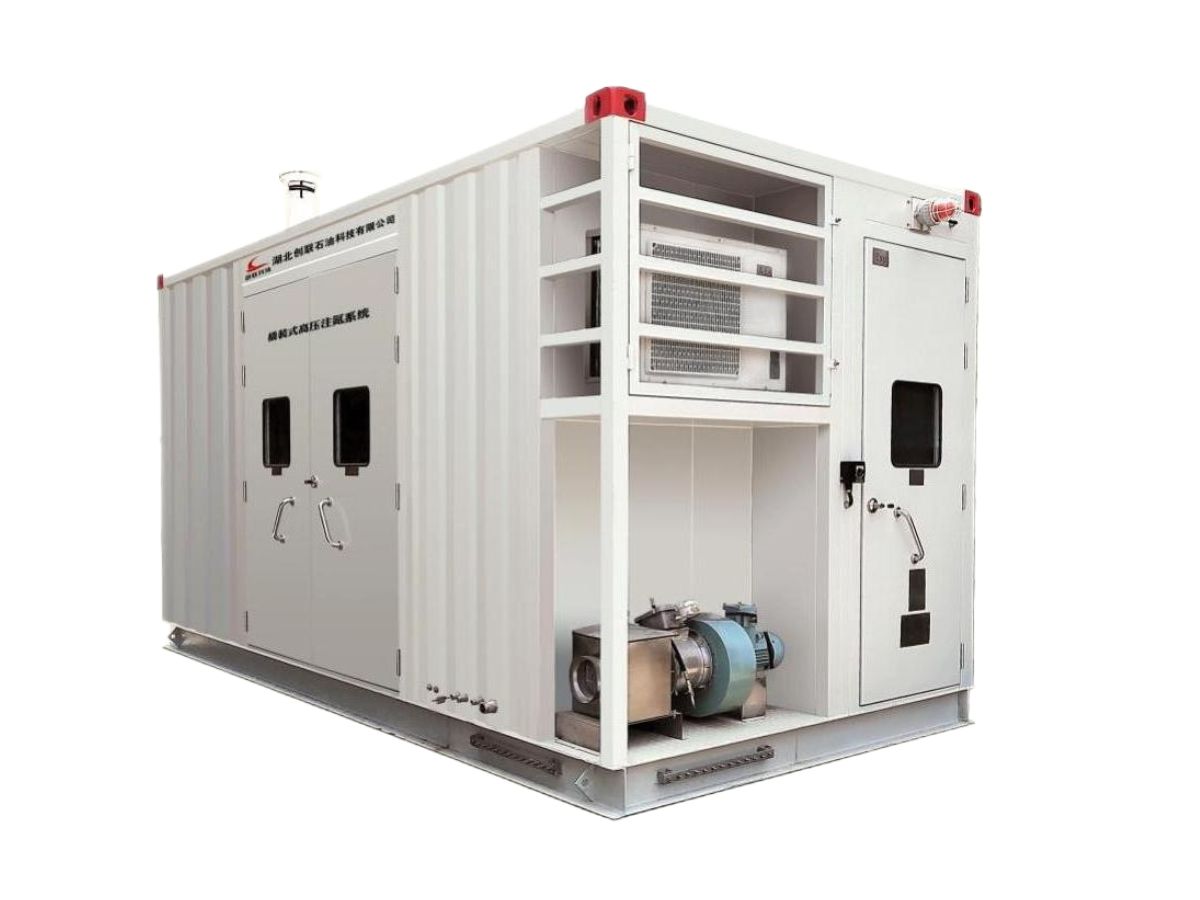

Skid-mounted high-pressure nitrogen injection system
Skid-mounted high-pressure nitrogen injection system
Product Introduction
The membrane separation nitrogen generation and high-pressure injection system adopts a modular design, equipped with a micro-nano gas-liquid dispersion system wellhead device, providing a continuous and stable supply and injection of high-pressure nitrogen into oil wells. It is suitable for field continuous operation conditions and climatic conditions. It features an automated control system and a user-friendly intelligent operating system. The nitrogen purity is adjustable and can be stably output to suit different gas usage conditions.
Functions and Features
Simple process, high reliability, stable high-pressure nitrogen generation method, low energy consumption, low operating cost, saving costs for customers;
Programmable controller, realizing automatic process control, unattended operation;
Equipped with a purity analyzer, pressure gauge, and flow meter, the purity, pressure, and gas volume of nitrogen are displayed online; the nitrogen generation membrane module has no mechanical moving parts, resulting in low maintenance costs. Core components such as air compressors, filters, and membrane modules are all selected from top-tier products.
| Nitrogen Generation Flow Rate | 12m³/h |
| Nitrogen Purity | 99.9% (adjustable) |
| Boosting Range | 1-30MPa |
| Equipment Type | Vehicle-mounted/Skid-mounted/Fixed |
| Power Supply | Diesel engine or electric drive |
| Nitrogen Injection Pressure | 6-35 +Mpa |
