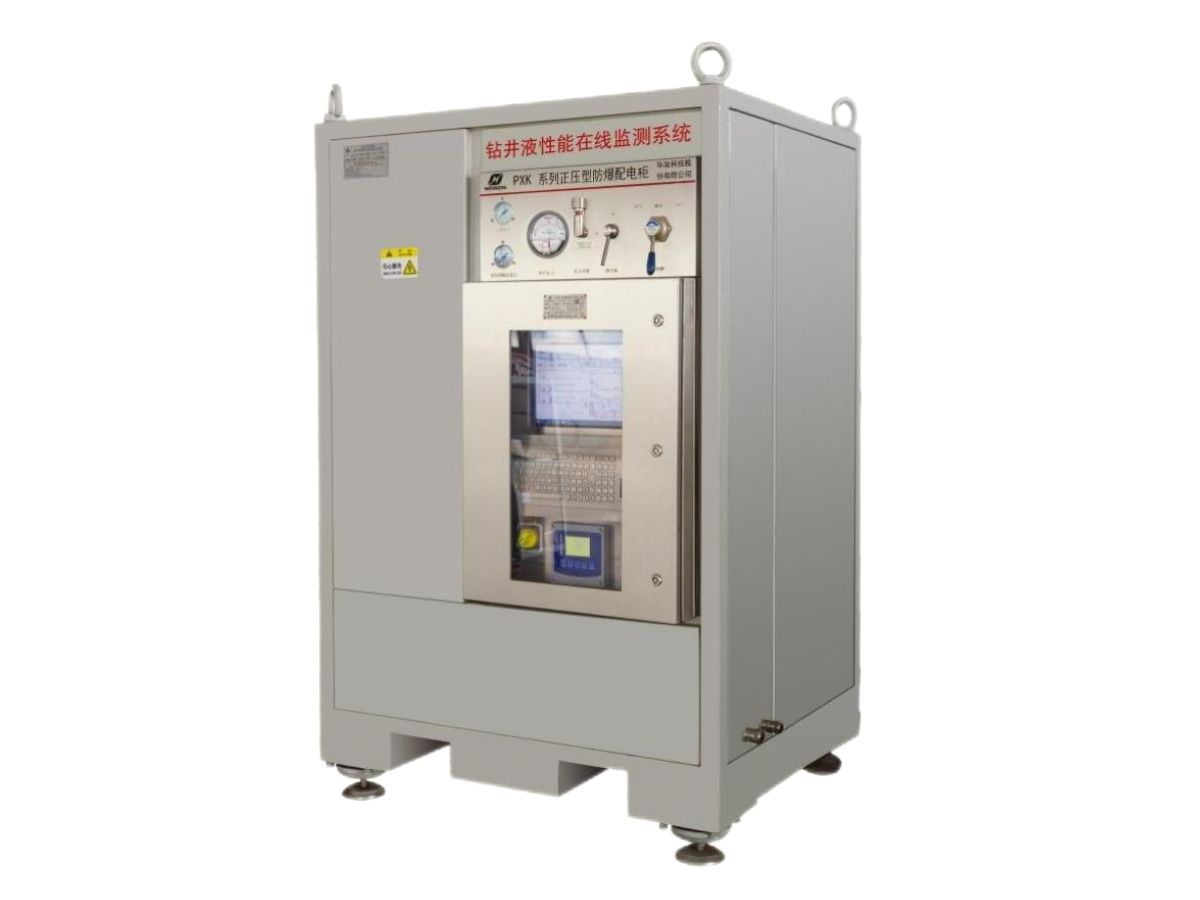

Online monitoring system for drilling fluid performance
Online monitoring system for drilling fluid performance
Product Introduction
The online intelligent monitoring system for drilling fluid performance testing includes drilling fluid viscosity density, rheology, filtration, PH value, temperature, etc. The system uses a PLC module to achieve closed-loop automated control of "sampling-monitoring-return", and the component cleaning and operation steps are automatically controlled by the program. Through key technology research and the development of the whole machine, an automated drilling fluid performance measurement system with independent intellectual property rights has been formed.
Key Technologies
Online drilling fluid monitoring technology;
Drilling fluid rheology monitoring technology;
Drilling fluid Marsh funnel viscosity monitoring technology;
Drilling fluid API filtration monitoring technology.
Product Functions
It has functions such as automatic sampling, automatic measurement, automatic cleaning, fault diagnosis, and emergency shutdown;
The liquid level control in the module is achieved through liquid level measurement feedback using a through-beam fiber optic sensor and a laser displacement sensor;
The drilling fluid static water loss measurement module realizes automatic filter cover replacement;
The test results are automatically saved, making it convenient for on-site engineers to view them at any time, and the test data can also be exported in Excel format;
The instrument has a remote communication function, and the on-site measurement data can be viewed in real time through a laptop or other display terminal.
| Drilling Fluid Temperature Measurement | Range 0~80℃, error control ±0.5, frequency 1 time/s |
| Drilling Fluid Density Measurement | Range 0.7~2.5g/cm³, error control ±0.01, frequency 1 time/s |
| Drilling Fluid pH Measurement | Range 3~14, error control ±0.05, frequency 1 time/s |
| Drilling Fluid Funnel Viscosity Measurement | Error control ±0.5, frequency 1 time/3min |
| Drilling Fluid Rotational Viscosity Measurement | Error control ±1.5, frequency 1 time/30min |
| Drilling Fluid API Filtration Measurement | Error control ±0.2, frequency 1 time/30min |
