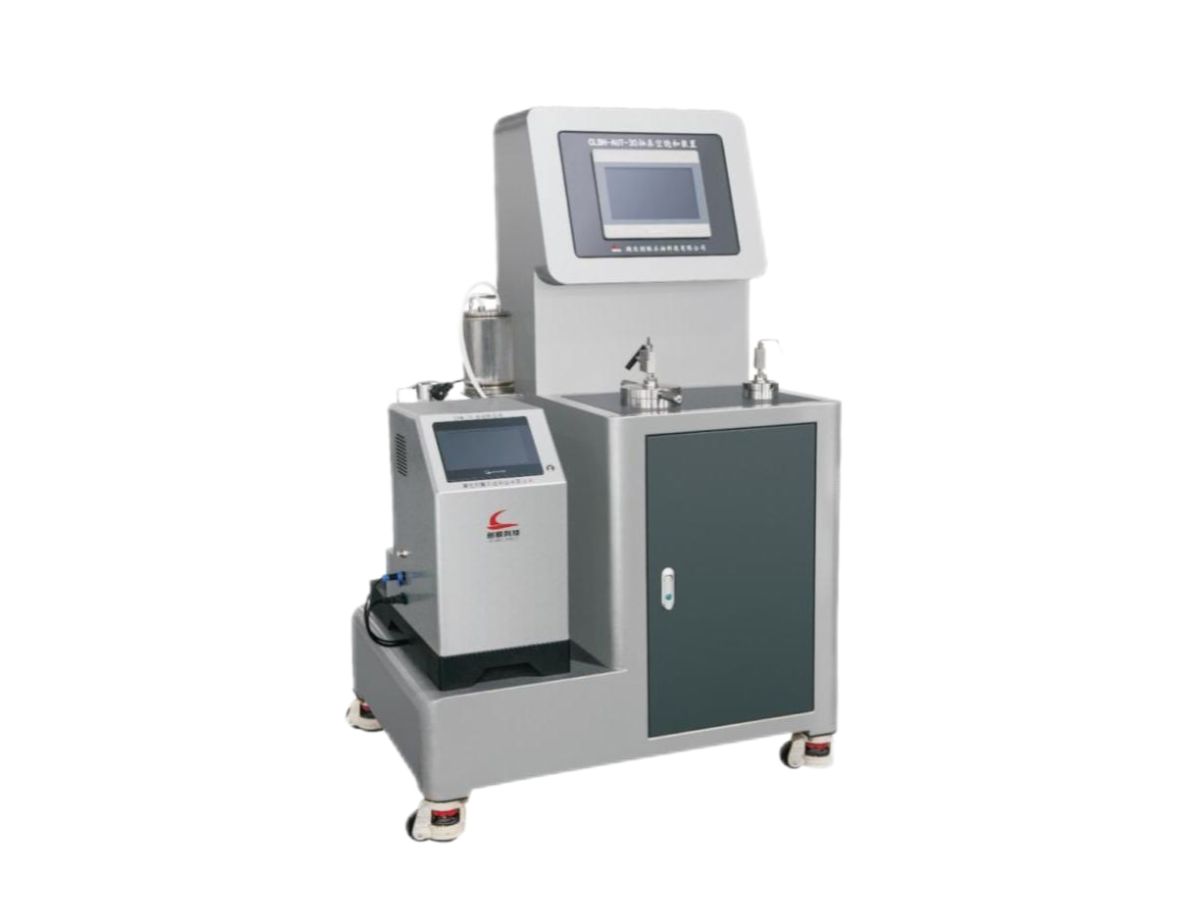

Automatic vacuum saturation device for core samples
Automatic vacuum saturation device for core samples
The automatic vacuum saturation device for cores provides a pressurization system that allows the core to achieve full liquid saturation in the saturating liquid, thus preparing for the measurement of other parameter indicators of the core. Its working principle is to first use a vacuum pump to evacuate the sample chamber, core capillaries, and saturating liquid, making it a vacuum, then introduce the evacuated saturating liquid into the sample chamber, then pressurize and maintain the pressure, allowing the core to be fully saturated under high pressure. Its features are: compact structure, high working pressure, and simple operation.
Technical Parameters |
|
| Working Pressure | ≤50MPa |
| Working Temperature | Room Temperature |
| Vacuum Range | -0.1MPa~0MPa |
| Saturation | 95~98% |
| Applicable Medium | General corrosive liquids |
