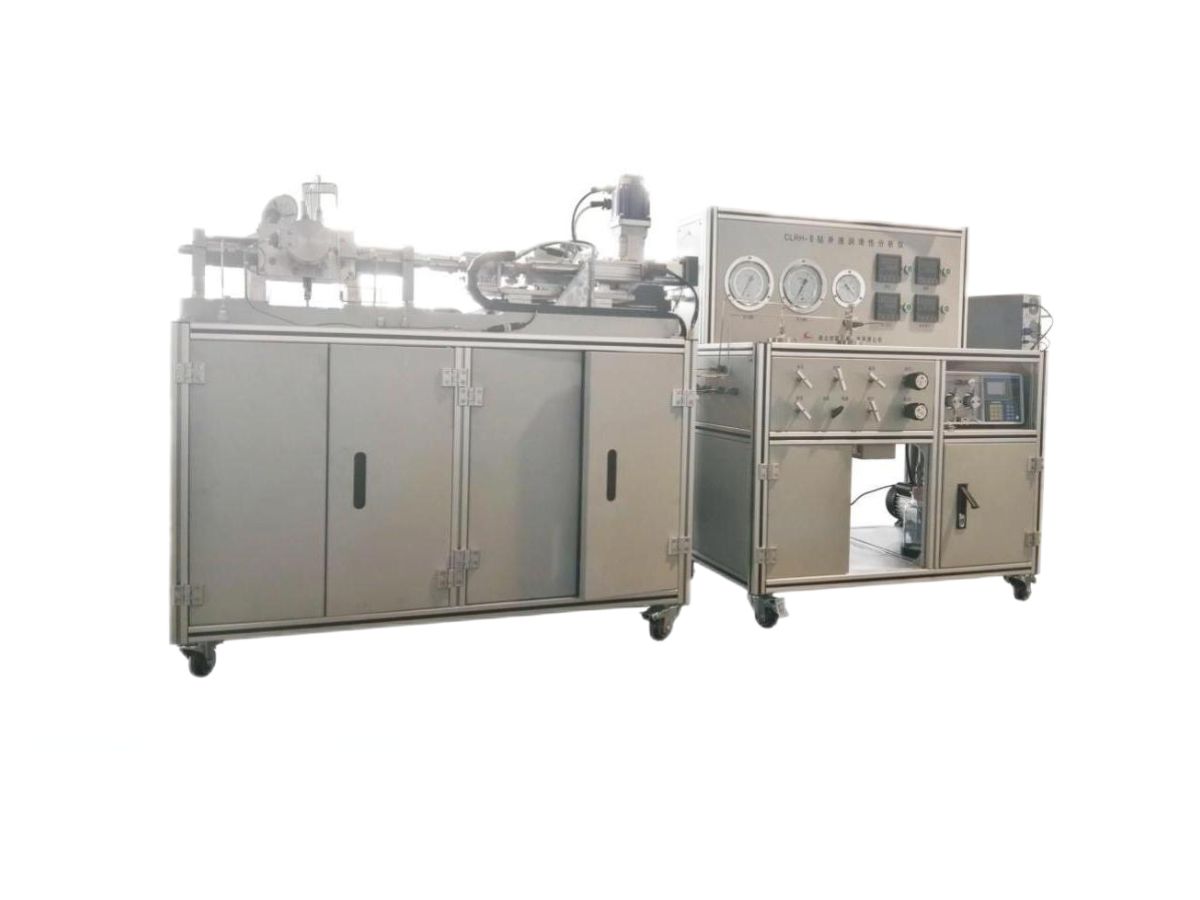

High-temperature, high-pressure lubrication simulation test rig
High-temperature, high-pressure lubrication simulation test rig
The high-temperature, high-pressure lubrication simulation and evaluation system simulates the high-temperature and high-pressure conditions of the formation through simulation, simulates drilling fluid loss during actual drilling, and analyzes the rotational and sliding friction between the drill string and the formation rock during drilling through experiments to evaluate the effectiveness of drilling fluid lubricants and the overall lubricity of the drilling fluid system.
Technical Parameters |
|
| Working Pressure Difference | 20MPa |
| Working Temperature | 180℃ |
| Simulated Casing Dimensions | 69.85mm×0.6m |
| Simulated Drill String Dimensions | 40mm×1258mm |
| Simulated Core Dimensions | 304.8×25.4×36mm |
| Radius of Arcuate Surface | 15.05mm |
| Torque Measurement Range | 0~100N.m |
| Thrust Measurement Range | 0~1000N |
| Speed Range | 1~150r/min |
| Simulated Mud Return Rate | 0.6m/s~1.2m/s |
Instrument Features
The equipment provides higher experimental temperature and pressure, simulating the reservoir environment in deep well drilling;
Simulates the drilling and tripping processes during actual drilling, resulting in more realistic data;
The two-way balanced pressurization system can effectively eliminate the influence of equipment system friction on the experimental results;
The data from the specially designed core model test is closer to the actual field conditions.
Instrument Functions
Simulate the sliding friction and rotational friction between the drill string and the rock and drilling fluid during the drilling process under the conditions of formation temperature and pressure, with drilling fluid circulation or static conditions;
Simulate the filtration loss of drilling fluid during the circulation process under the conditions of formation temperature and pressure, and simultaneously measure the sliding friction and rotational friction between the drill string and the filter cake.
